Spatial Element Tools Revit Add-Ins : Space Tools

Space Tools is an Autodesk® Revit® Add-Ins tools to works with Space and Space Tags. Previously, it was released as stand-alone add-ins and now its under Spatial Element Tools. Space Tools includes the following commands:

Remove Redundant Spaces (to remove redundant spaces from the current document)
Center Space (relocate spaces location points to the center of the spaces)
Space Tag To Space (relocate spaces’ tags to the spaces location points)
Create Views (create floor plan, ceiling plan, 3D view, and elevations for the spaces)

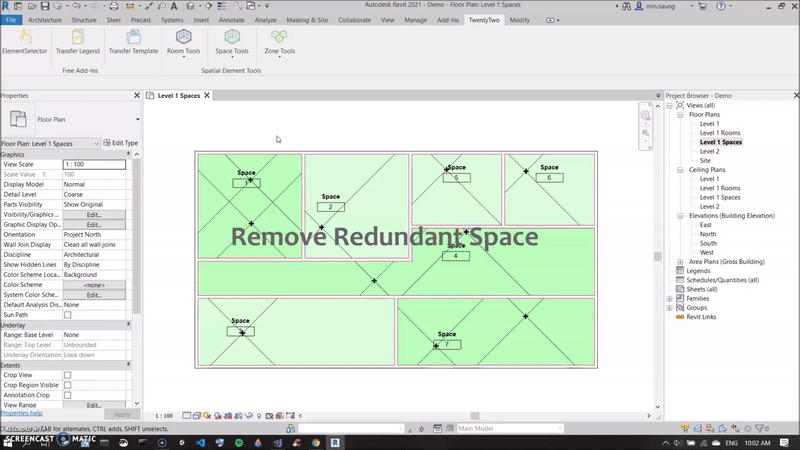

Sample Usage

Create Views Usage

Create Views tool is to generate plans, perspectives, and elevations from the spaces in the current document with a few simple steps.

First of all, select (Right Click or Shift Select for multi-selection) the spaces from the Listbox which display (“SpaceNumber SpaceName” ) all the placed room from the current document (see figure 1.0).

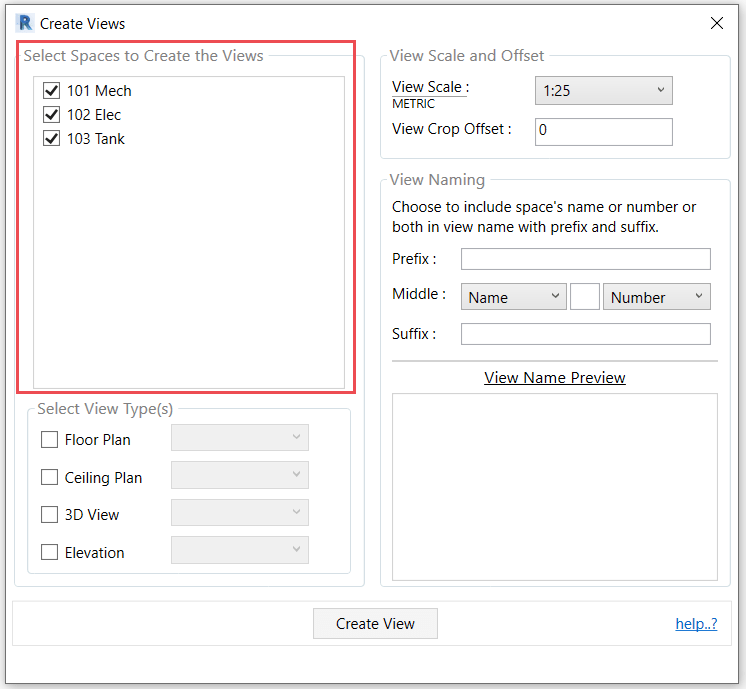

This image has an empty alt attribute; its file name is 1.png — figure 1.0

After this, select the view types and view type families to be used for the views (see figure 1.1).

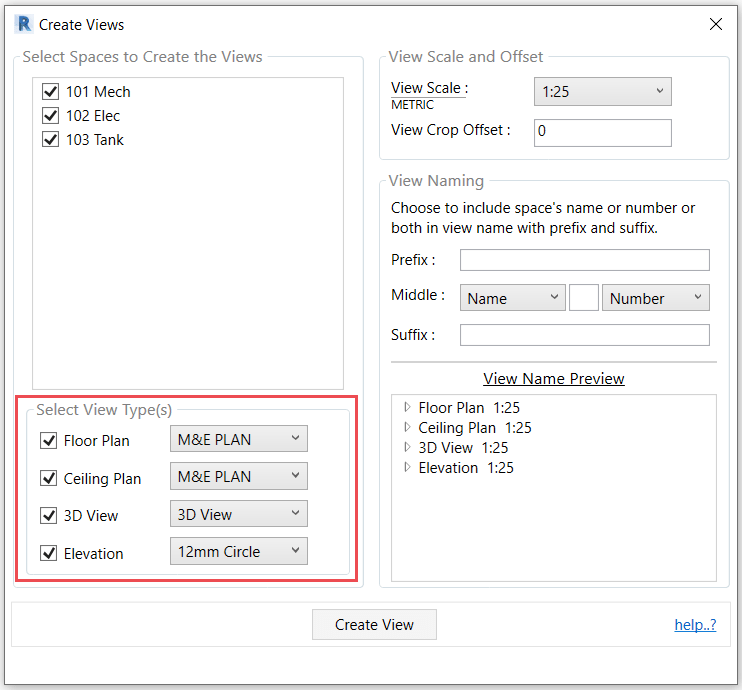

This image has an empty alt attribute; its file name is 2.png — figure 1.1

View Scale value options show related to the current project unit, figure 1.1a shown METRIC unit and see figure 1.1b for IMPERIAL unit. View Crop Offset value unit is used millimeter(mm) for METRIC and feet(ft) for IMPERIAL.

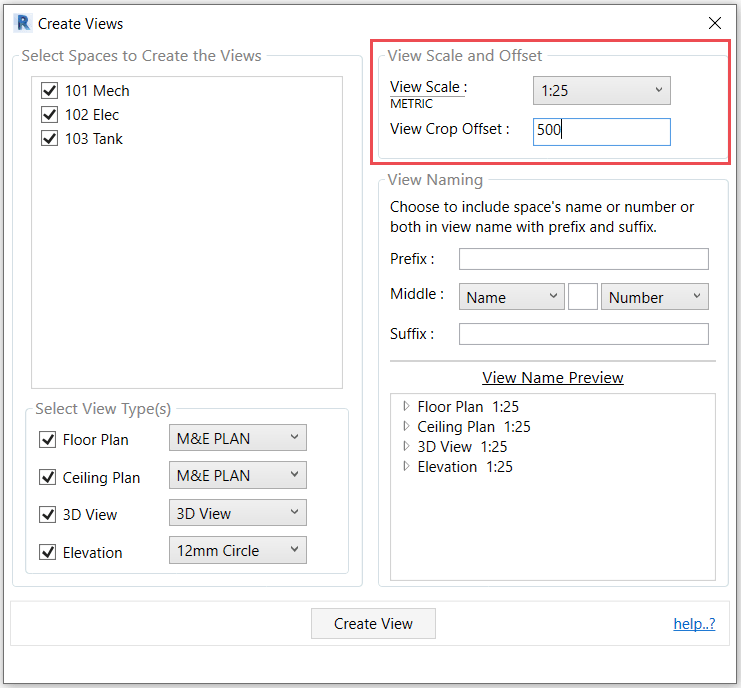

This image has an empty alt attribute; its file name is 3-1.png — figure 1.1a (METRIC UNIT)

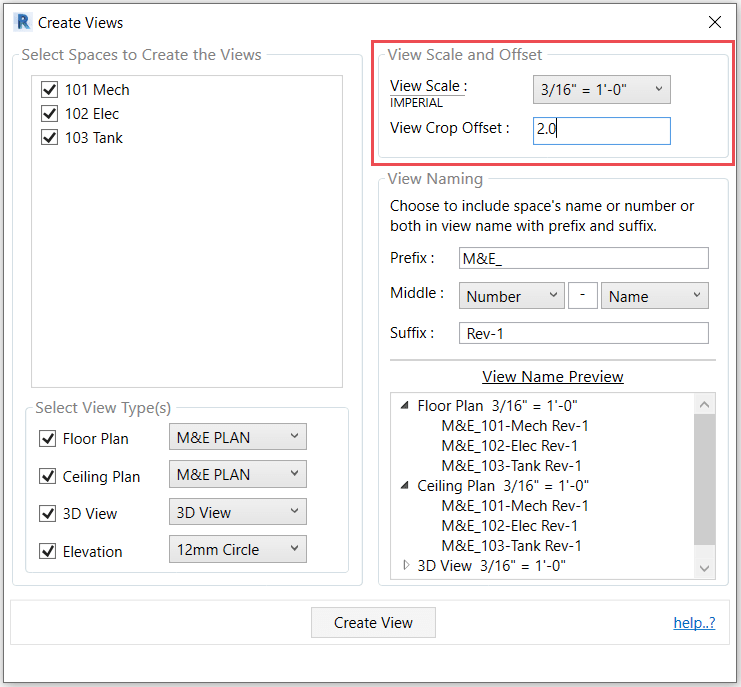

This image has an empty alt attribute; its file name is 5.png — figure 1.1b (IMPERIAL)

In the View Naming box, you can add Prefix, Suffix to your view name. The Middle is for SpaceName and SpaceNumber with type-able spacing and if you want to omit SpaceName or SpaceNumber choose None from the dropdown list. And View Naming Preview is dynamically displaying the name of the views which are going to create. (see figure 1.2 & 1.3)

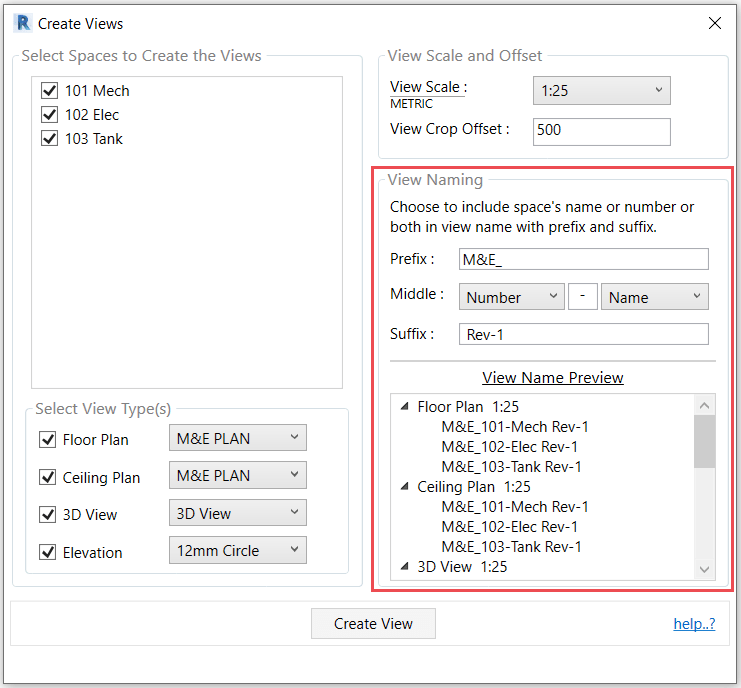

This image has an empty alt attribute; its file name is 11.png — figure 1.2 – View Naming (METRIC Scale)

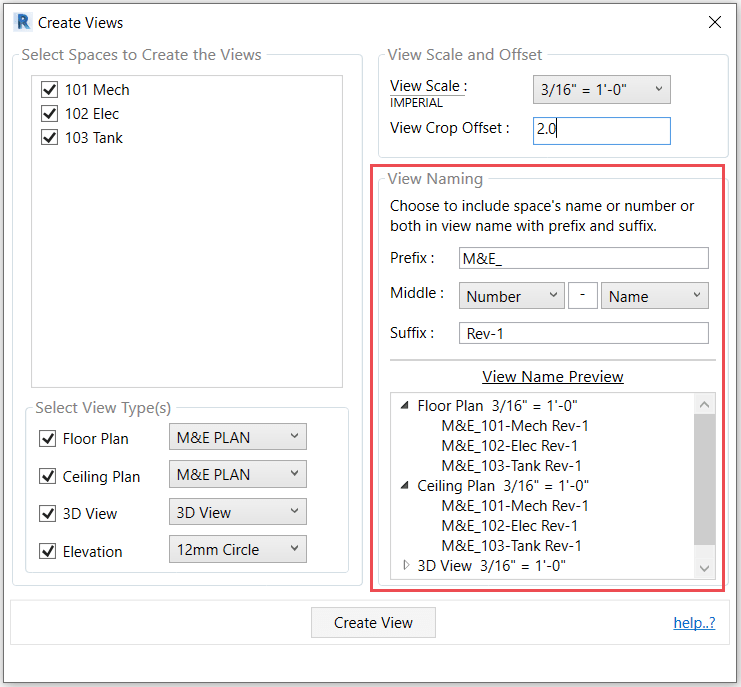

This image has an empty alt attribute; its file name is 7.png — *figure 1.3 – View Naming (IMPERIAL Scale)*

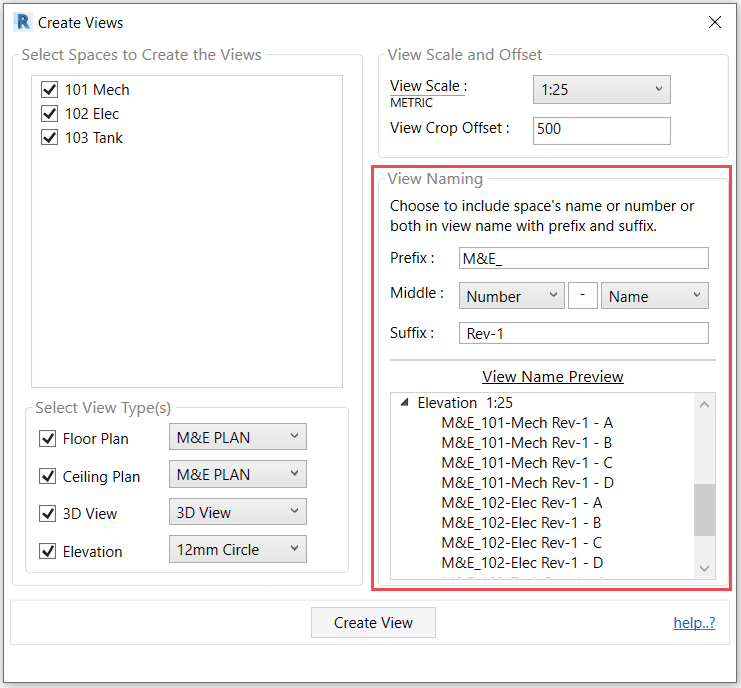

One last thing is View Naming for Elevation views which are included additional suffix (A, B, C, D) by default for each of the elevation sides from the elevation marker. (figure 1.4)
