Navisworks API : Dockable Pane Plugin

Welcome to the eleventh tutorial of Navisworks® API series, this post is to cover a different type of plugin called “DockPanePlugin“, which can be used to add custom Dockable Panes into the Navisworks GUI system. In this tutorial, we will create a Dockable Pane with a WPF (Windows Presentation Foundation) Control to host a Web Browser.

WPF DockablePane Demo

Setting up Navisworks® Add-Ins project in the visual studio, you can follow Creating Navisworks Add-Ins tutorial to set up the project. After setting up the the project add two attributes: Plugin & DockPanePlugin and interface change to DockPanePlugin, we’ll also need to override two methods: CreateControlPane – called to tell the plugin to create it’s pane and DestroyControlPane – called to tell the plugin to destroy it’s pane. (figure 1.0)

figure 1.0 – DockPanePlugin Interface

In the CreateControlPane method, ElementHost control is a Windows Forms control that can be used to host a WPF (Windows Presentation Foundation) element. Assign our WPFControl (we’ll create later..) control’s properties, AutoSize & Child, and called CreateControl method is to force to handle immediately for manipulation of the our dockable pane (WPFControl). DestroyControlPane method is to dispose and release all the resources used by our dockable pane. (figure 1.1)

figure 1.1 – CreateControlPane & DestroyControlPane Methods

Next to add a WPF User Control(XAML file) “WPFControl” to host a web browser that will display our dockable pane. (figure 1.2).

figure 1.2 – User Control (WPF)

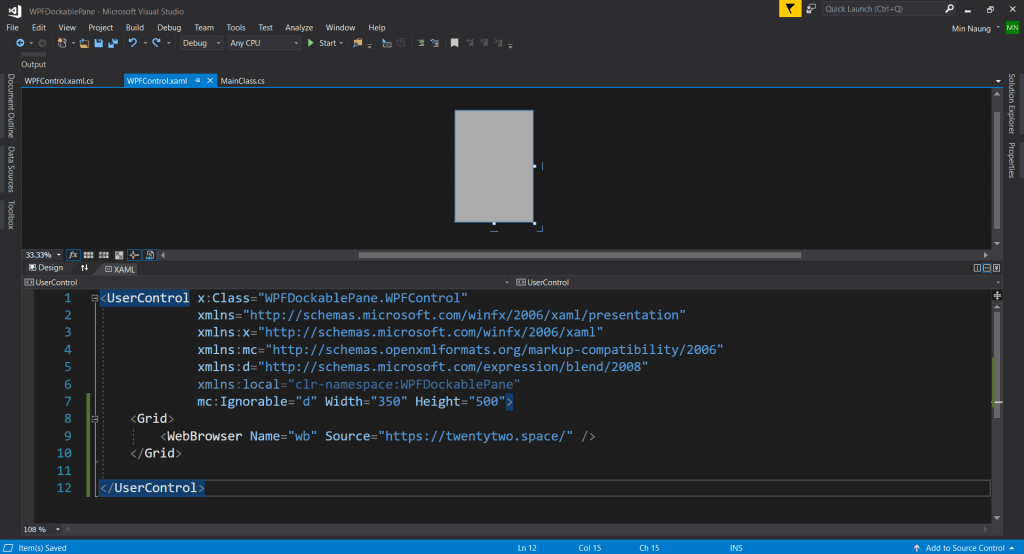

We just have to add a WebBrowser tag with Name and Source (a webpage to navigate and display). (figure 1.3)

figure 1.3 – WPFControl / WebBrowser

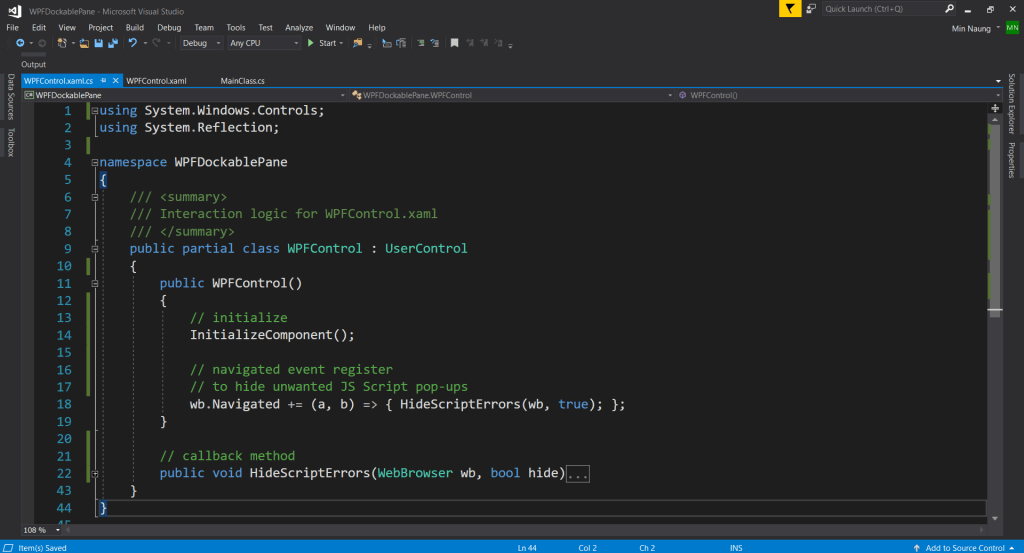

In WPFControl.xaml.cs , we’ll subscribe WebBrowser’s Navigated Event with a callback method to hide unwanted JavaScript pop-up dialogs during web page loading. (figure 1.4)

figure 1.4 – Navigated Event

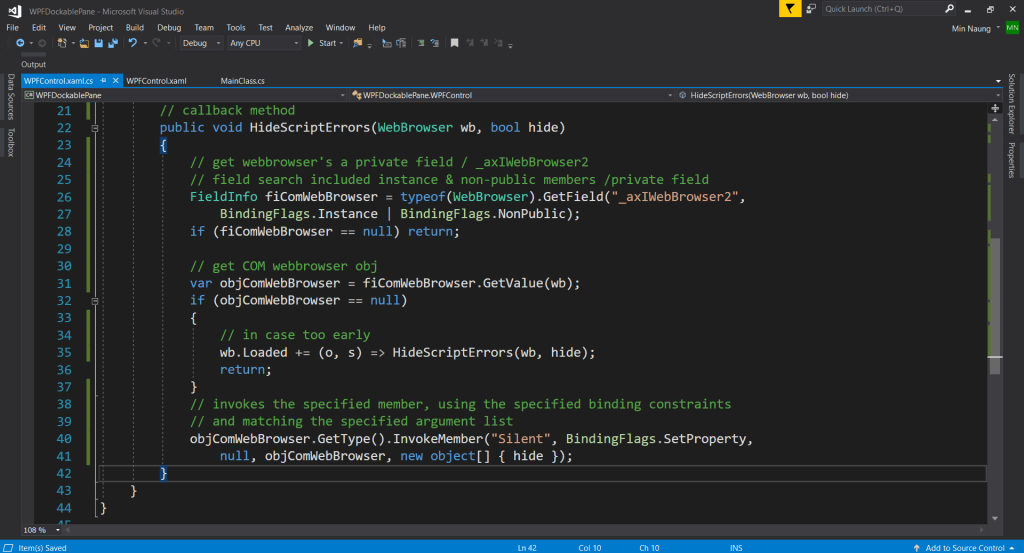

What this callback, HideScriptErrors, method does is set the .Silent property on the underlying activeX object which is the same as the .ScriptErrorsSuppressed property which is the Windows forms equivalent. (Got it from a stackoverflow answer.) (figure 1.5)

figure 1.5 – HideScriptErrors

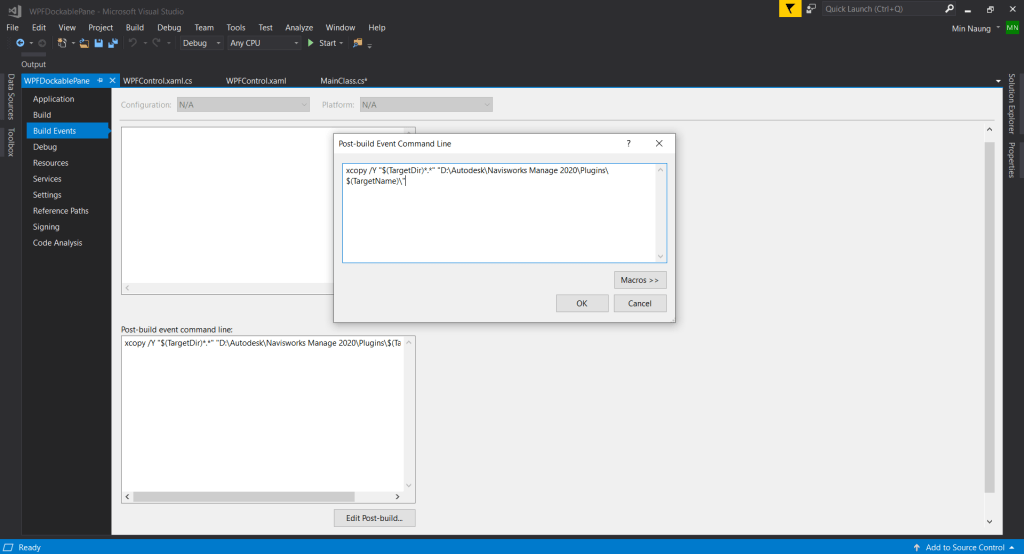

We’ll add Post-build Command line for debugging purpose. (figure 1.6)

In Build Events tab, edit Post-build event : xcopy /Y "$(TargetDir)." "D:\Autodesk\Navisworks Manage 2020\Plugins\$(TargetName)\" – to copy the output dll file.

figure 1.6 – Post Build Event

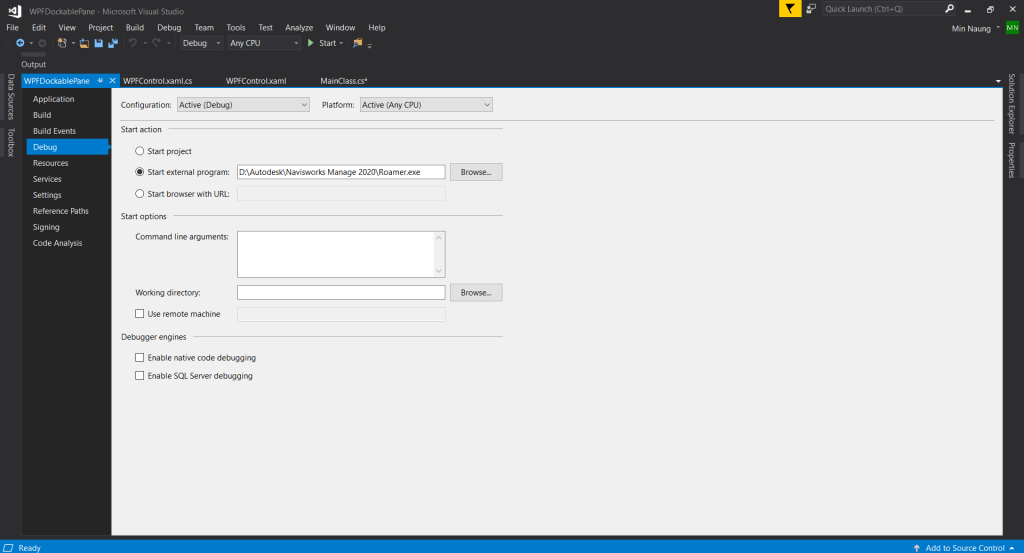

Finally, change the platform solution to x64, add external program to Navisworks’ Roamer.exe and click Start. (figure 1.7)

figure 1.7 – Debug > Start External Program

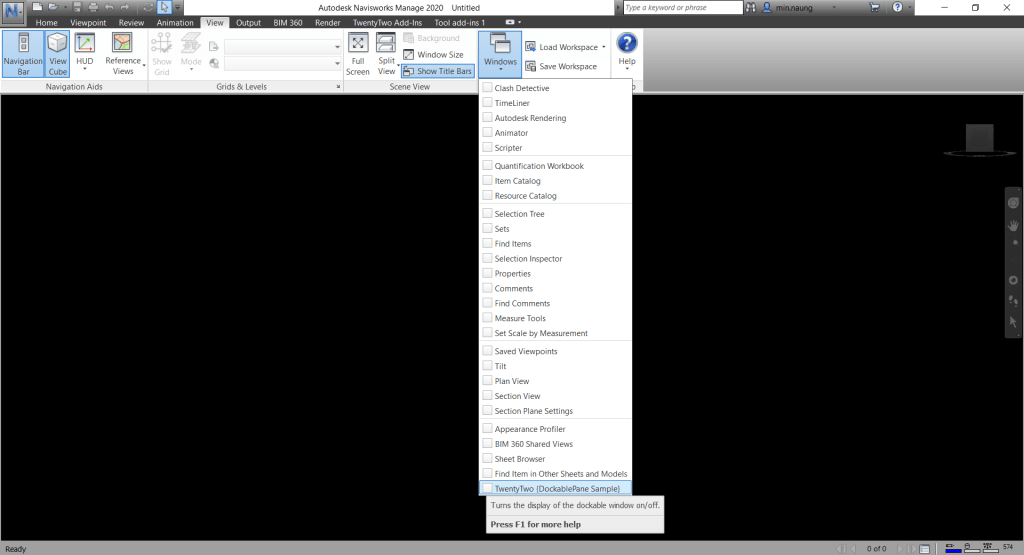

After Navisworks Application has launched, you can find our Dockable Pane in Navisworks GUI > View Tab > Windows Dropdown, check to display in the UI.

That’s all for this tutorial, you can get the complete source code from here, Cheers!
