Quasar Package Guide: PART – A

(PACKAGE DEPRECATED)

Quasar Package Guide : PART – A

ActiveView
CeilingViewByRoom
CopyPasteFilter
CreateDuctByModelCurve
CreateBeamByModelCurve
CreateWallSweep
ElevationInRoom
ThreeDViewByRoom
ViewSelector

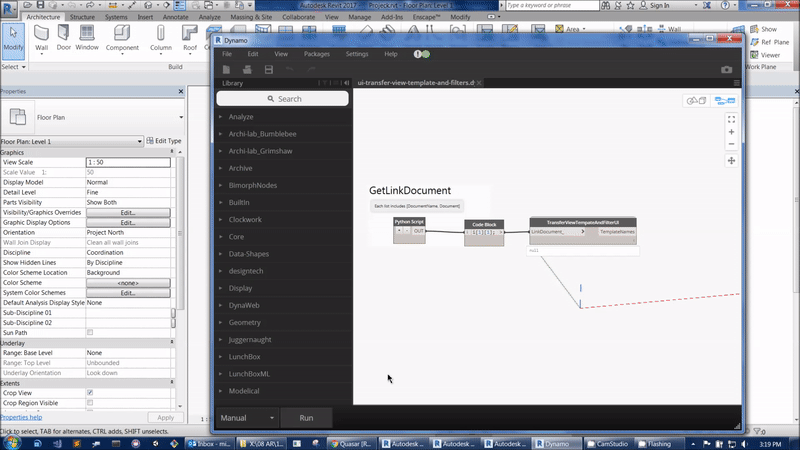

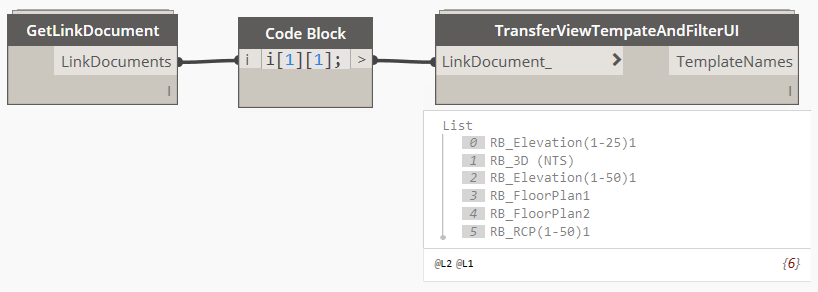

TransferViewTemplateAndFilterUI

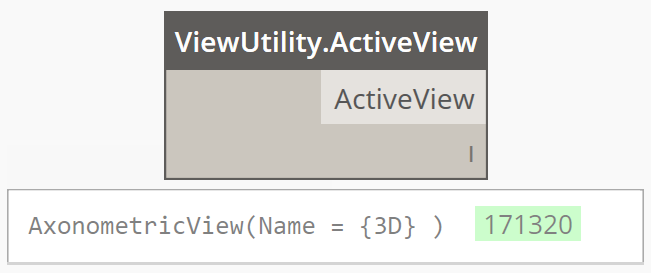

`ActiveView`

Return ActiveView of the current document.

ActiveView – IronPython

# dynamo version - 1.3.4
import clr

# clr.AddReference loads and imports .net assembly(dll)
# load RevitAPI.dll and RevitServices.dll
clr.AddReference("RevitAPI")
clr.AddReference("RevitServices")

# import document manager
from RevitServices.Persistence import DocumentManager
# import transaction manager
from RevitServices.Transactions import TransactionManager

# instantiate current document
doc = DocumentManager.Instance.CurrentDBDocument

# active view
activeView = doc.ActiveView

# output
OUT = activeView

`CeilingViewByRoom`

Create CeilingPlanView by Level, Room Element(s), ViewName and Offset ( ViewCrop distance from Room Element) . * Note : If you use for multiple Room Elements, the list length of Rooms input & Names input must be the same (should not include the same naming) and for Level & Offset inputs always be a single value input.

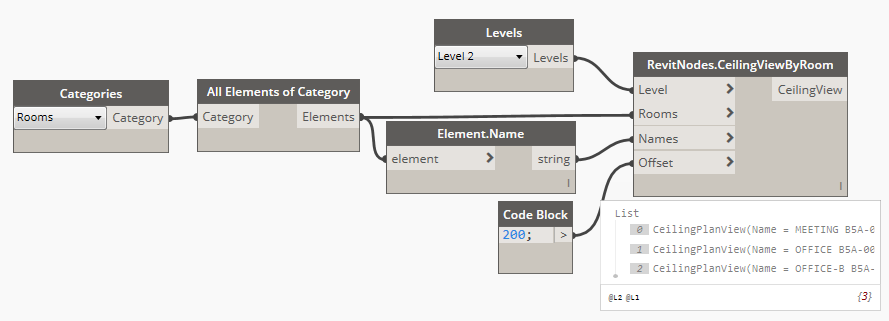

CeilingViewByRooom — QuasarPackage – CeilingViewByRoom

CeilingViewByRoom – IronPython

# dynamo version - 1.3.4

import clr
clr.AddReference("RevitAPI")
clr.AddReference("RevitServices")

# import all classes from Revit DB
from Autodesk.Revit.DB import *
# import document manager
from RevitServices.Persistence import DocumentManager
# import transaction manager
from RevitServices.Transactions import TransactionManager
# instantiate current document
doc = DocumentManager.Instance.CurrentDBDocument

level = IN[0]
rooms = IN[1]
names = IN[2]
# metric unit (mm to ft)
Offset = IN[3]/304.8
result = []

# make list
if not isinstance(rooms,list):
	Rooms = UnwrapElement([rooms])
else:
	Rooms = UnwrapElement(rooms)

if not isinstance(names,list):
	Names = [names]
else:
	Names = names

# create new bbox based on offset
def crop_box(bbox, offset):
	minX = bbox.Min.X - offset
	minY = bbox.Min.Y - offset
	minZ = bbox.Min.Z - offset
	maxX = bbox.Max.X + offset
	maxY = bbox.Max.Y + offset
	maxZ = bbox.Max.Z + offset

	newbox = BoundingBoxXYZ()
	newbox.Min = XYZ(minX,minY, minZ)
	newbox.Max = XYZ(maxX, maxY, maxZ)
	return newbox

# collect views
views = FilteredElementCollector(doc).OfClass(View).ToElements()
# get first ceiling view
cview = [v for v in views if v.ViewType == ViewType.CeilingPlan][0]

# start transaction
TransactionManager.Instance.EnsureInTransaction(doc)

# loop room and name
for room,name in zip(Rooms,Names):
	# duplicate ceiling view
	view = cview.Duplicate(ViewDuplicateOption.WithDetailing)
	# get room bbox
	bbox = room.BoundingBox[doc.ActiveView]
	# create new bbox
	cbox = crop_box(bbox,Offset)
	# get duplicated view
	dupview = doc.GetElement(view)
	# set name
	dupview.Name = name
	# set view cropbox
	dupview.CropBox = cbox
	# set cropbox active
	dupview.CropBoxActive = True
	# set cropbox visibility
	dupview.CropBoxVisible = False
	# set scale
	dupview.Scale = 25
	# append result
	result.append(dupview)
# transaction done
TransactionManager.Instance.TransactionTaskDone()
# output result
OUT = result

`CopyPasteFilter`

Copy Filter Elements from a View to other Views in the same document.

CopyPasteFilter – IronPython

# dynamo version - 1.3.4

import clr
clr.AddReference("RevitAPI")
clr.AddReference("RevitServices")
from Autodesk.Revit.DB import *
from RevitServices.Persistence import DocumentManager
from RevitServices.Transactions import TransactionManager

doc = DocumentManager.Instance.CurrentDBDocument

# view to copy
viewtocopy= UnwrapElement(IN[0])
# views to paste
viewstopaste = IN[1]
# make list
if not isinstance(viewstopaste,list):
	viewstopaste = UnwrapElement([IN[1]])
else:
	viewstopaste = UnwrapElement(IN[1])

# start transaction
TransactionManager.Instance.EnsureInTransaction(doc)
# views to paste loop each view
for view in viewstopaste:
	# views to copy loop each filter id
	for id in viewtocopy.GetFilters():
		# set filter override
		view.SetFilterOverrides(id,viewtocopy.GetFilterOverrides(id))
		# set filter visibility
		view.SetFilterVisibility(id,viewtocopy.GetFilterVisibility(id))

# transaction done
TransactionManager.Instance.TransactionTaskDone()

# output views
OUT = viewstopaste

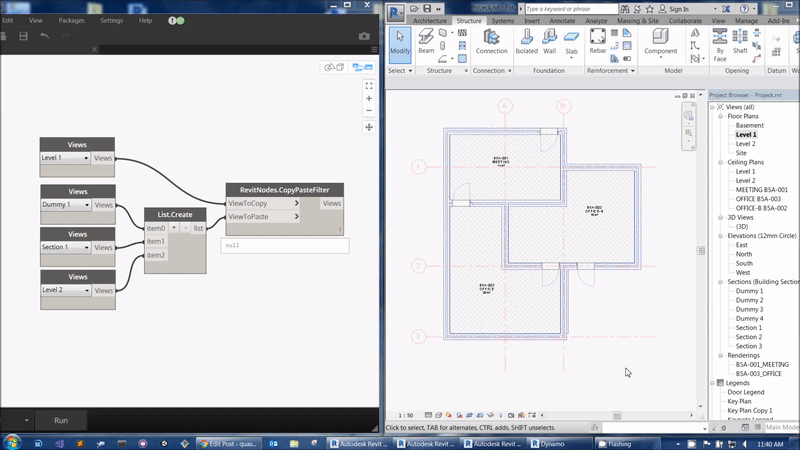

GIF_CopyPasteFilter — Demo – CopyPasteFilter

`CreateDuctByModelCurves`

Create Duct Element(s) by ModelCurve(s)/Line(s) and Duct FamilyType.

CreateDuctByModelCurve – IronPython

# dynamo version - 1.3.4

import clr
clr.AddReference("RevitAPI")
clr.AddReference("RevitServices")

from Autodesk.Revit.DB import *
from RevitServices.Persistence import DocumentManager
# import classes from mechanical namespace
from Autodesk.Revit.DB.Mechanical import *
from RevitServices.Transactions import TransactionManager

# instantiate current document
doc = DocumentManager.Instance.CurrentDBDocument

lines = IN[0]
ductType = UnwrapElement(IN[1])
ducts = []
# make list
if isinstance(lines, list):
	lines = UnwrapElement(lines)
else:
	lines = UnwrapElement([lines])
#current view level
level = doc.ActiveView.GenLevel
#collect family symbol
fsymbol = FilteredElementCollector(doc).OfClass(MechanicalSystemType).ToElements()[0]

#transaction start
TransactionManager.Instance.EnsureInTransaction(doc)
# loop lines
for line in lines:
	#create duct
	duct = Duct.Create(doc, fsymbol.Id,ductType.Id, level.Id, line.GeometryCurve.GetEndPoint(0), \
 line.GeometryCurve.GetEndPoint(1));
	#append to result
	ducts.append(duct)

#transaction end
TransactionManager.Instance.TransactionTaskDone()
# output result
OUT = ducts

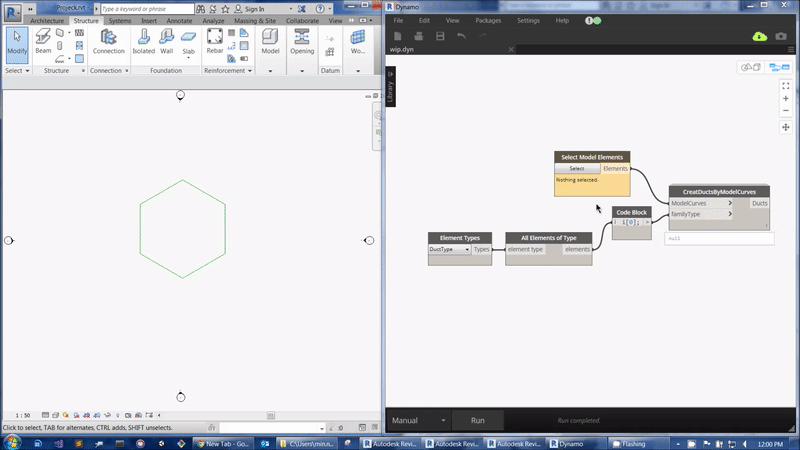

GIF_CreateDuct — Demo – CreateDuctByModelCurves

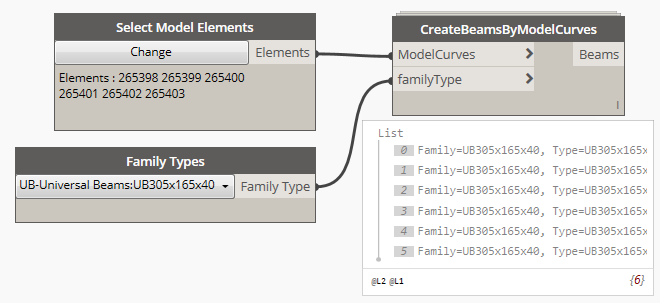

`CreateBeamsByModelCurves`

Create Beam Element(s) by ModelCurve(s)/Line(s) and Beam FamilyType.

CreateBeamByModelCurve – IronPython

# dynamo version - 1.3.4

import clr
clr.AddReference("RevitAPI")
clr.AddReference("RevitServices")

from Autodesk.Revit.DB import *
from RevitServices.Persistence import DocumentManager
from RevitServices.Transactions import TransactionManager

# instantiate current document
doc = DocumentManager.Instance.CurrentDBDocument

# input model curves
lines = IN[0]
# empty list for return output
beams = []

# if input is a list
if isinstance(lines, list):
	lines = UnwrapElement(lines)
# if not a list
else:
	lines = UnwrapElement([lines])

#current view level
level = doc.ActiveView.GenLevel

#collect family symbol
fsymbol = FilteredElementCollector(doc).OfClass(FamilySymbol)

#collect first symbol from structural framing symbols
sym=fsymbol.OfCategory(BuiltInCategory.OST_StructuralFraming).ToElements()[0]

#transaction start
TransactionManager.Instance.EnsureInTransaction(doc)

for line in lines:

	#create beam
	beam = doc.Create.NewFamilyInstance(line.GeometryCurve, sym,
		level, Structure.StructuralType.Beam)
	#append to output
	beams.append(beam)

#transaction end
TransactionManager.Instance.TransactionTaskDone()

#output
OUT = beams

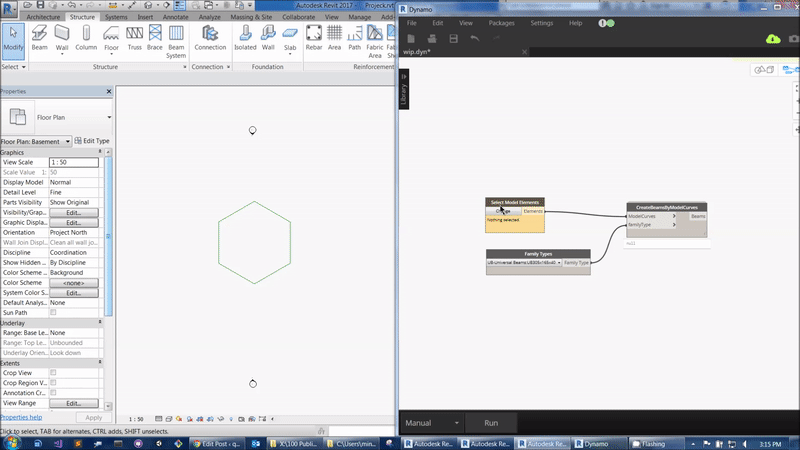

GIF_CreateBeam — Demo – CreateBeamsByModelCurves

`CreateWallSweep`

Create WallSweep by WallElement(s), WallType,a string “Sweep”/”Reveal”,a Boolean value & an Offset value from Wall base level.

# dynamo version - 1.3.4
import clr
clr.AddReference("RevitAPI")
clr.AddReference("RevitServices")

from Autodesk.Revit.DB import *
from RevitServices.Persistence import DocumentManager
from RevitServices.Transactions import TransactionManager

# instantiate current document
doc = DocumentManager.Instance.CurrentDBDocument

# for output result
wallSweeps = []
# wallsweeptype dictionary
wallSweepTypes = {"Sweep": WallSweepType.Sweep,
				  "Reveal": WallSweepType.Reveal}
# input1 walls
walls = IN[0]
# input3 string input
sweepOrReveal = IN[2]
# input4 boolean input default is horizontal(false)
vertical = IN[3] if IN[3] else False
# distance from wall base if horizontal, vertical wall start
# default is 1000mm
distance = IN[4]/304.8 if IN[4] else 1000/304.8

# check and make list
if not isinstance(walls,list):
	walls = UnwrapElement([IN[0]])
else:
	walls = UnwrapElement(IN[0])
# input2 wall sweep type input
wallSweepTypeId = UnwrapElement(IN[1]).Id
# wall sweep info class constructor
wallSweepInfo = WallSweepInfo(wallSweepTypes[sweepOrReveal],vertical)
# set distance
wallSweepInfo.Distance = distance
# start transaction
TransactionManager.Instance.EnsureInTransaction(doc)
# loop input walls
for wall in walls:
	# create wall sweep by wall, wallsweepid and wallsweep info
	wallsweep = WallSweep.Create(wall,wallSweepTypeId,wallSweepInfo)
	# append result to output
	wallSweeps.append(wallsweep)
# transaction done
TransactionManager.Instance.TransactionTaskDone()
# output result
OUT = wallSweeps

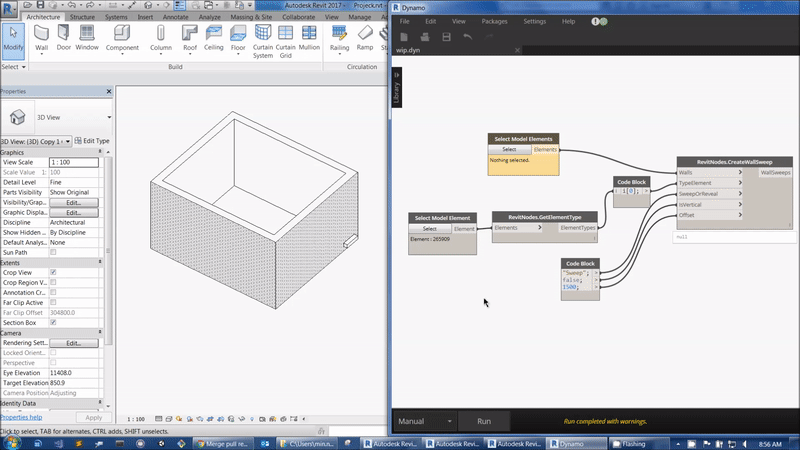

GIF_CreateWallSweep — Demo – CreateWallSweep

`ElevationInRoom`

Create ElevationViews by Room Element(s), a FloorPlan View & an Offset value (ViewCrop distance from Room Element(s)). Default Naming is ” RoomNumber_RoomName ” + “A, B, C, D” for each of the ElevationView from the ElevationMarker.

*Note : Although Rooms input can accept multiple Room Element(s), Views & Offset inputs is only accept a single input.

Code Sample on github repo.

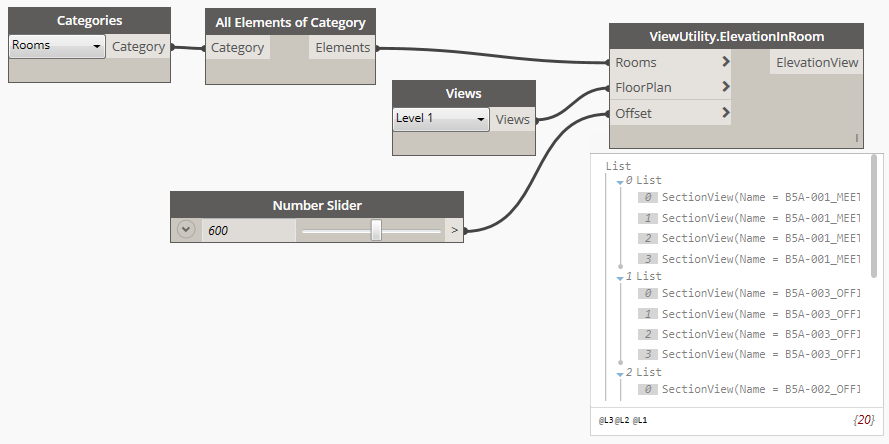

ElevationByRoom — QuasarPackage – ElevationInRoom

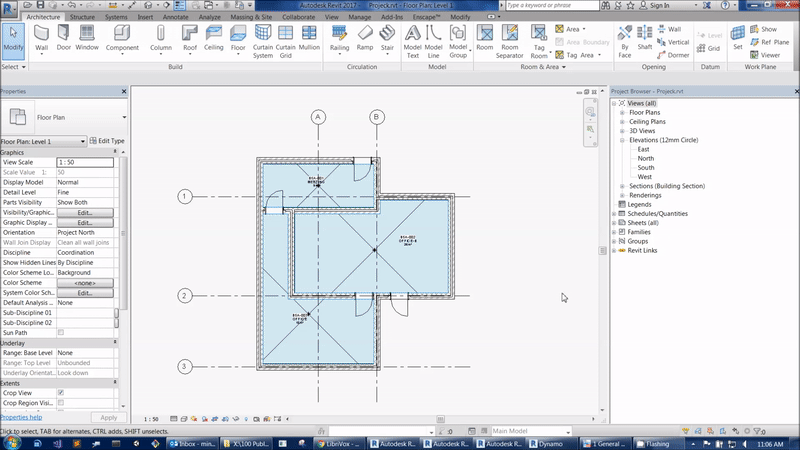

GIF_ElevationByRoom — Demo – ElevationInRoom

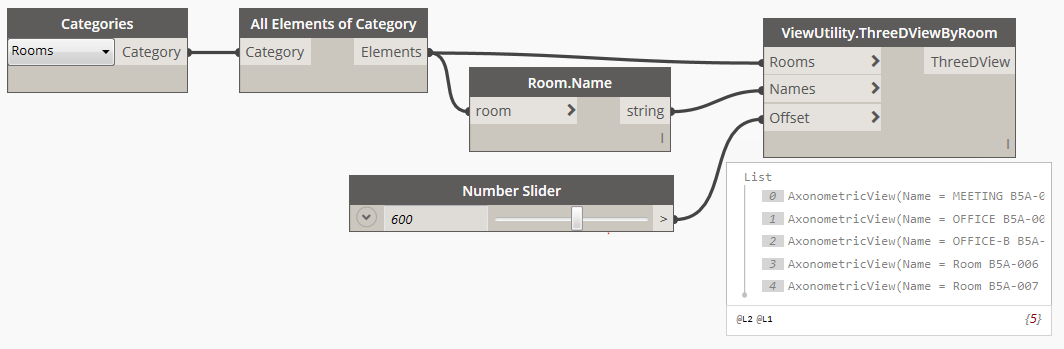

`ThreeDViewByRoom`

Create 3DView(s) by Room Element(s), ViewName(s) & an Offset value (SectionBox Crop distance from Room Element(s)).

*Note : Although Rooms & Names inputs can accept multiple value input, Offset input is only accept a single input.

ThreeDViewByRoom – IronPython

# dynamo version - 1.3.4


import clr
clr.AddReference("RevitAPI")
clr.AddReference("RevitServices")

from Autodesk.Revit.DB import *
from RevitServices.Persistence import DocumentManager
from RevitServices.Transactions import TransactionManager
# instantiate current document
doc = DocumentManager.Instance.CurrentDBDocument

rooms = IN[0]
names = IN[1]
offset = IN[2]/304.8  # mm to ft
results = []

# check list for rooms
if isinstance(IN[0], list):
	rooms = UnwrapElement(IN[0])
else:
	rooms = [UnwrapElement(IN[0])]
# check list for name
if isinstance(IN[1],list):
	names = IN[1]
else:
	names = [IN[1]]


def crop_box(bbox, offset):
	# modify x,y,z point of bbox
	minX = bbox.Min.X - offset
	minY = bbox.Min.Y - offset
	minZ = bbox.Min.Z - offset
	maxX = bbox.Max.X + offset
	maxY = bbox.Max.Y + offset
	maxZ = bbox.Max.Z + offset
	# create new bbox
	newbox = BoundingBoxXYZ()
	newbox.Min = XYZ(minX,minY, minZ)
	newbox.Max = XYZ(maxX, maxY, maxZ)
	return newbox

def createNewSectionBox(elem,viewName,offset):
	# collect view type in document
	viewTypes = FilteredElementCollector(doc).OfClass(ViewFamilyType)
	#loop view types
	for i in viewTypes:
		# floor plane view type
		if i.ViewFamily == ViewFamily.ThreeDimensional:
			# get type id
			viewTypeId = i.Id
			# break the loop
			break
	# create new bbox by current bbox and offset
	bbox = crop_box(elem.BoundingBox[doc.ActiveView],offset)

	# create 3D View
	view = View3D.CreateIsometric(doc, viewType.Id)
	# set view name
	view.Name = viewName
	# set sectionbox to bbox
	view.SetSectionBox(bbox)
	# set cropbox active
	view.CropBoxActive = True
	# set cropbox visibility
	view.CropBoxVisible = True
	# set view scale
	view.Scale = 50
	# set detail level to fine
	view.DetailLevel = ViewDetailLevel.Fine
	# set detail style to shading
	view.DisplayStyle = DisplayStyle.Shading
	# return view
	return view

# start Transaction
TransactionManager.Instance.EnsureInTransaction(doc)
# loop element and name together
for element,name in zip(rooms,names):
	# call function with element, name and offset arguments
	# and append it to results
	results.append(createNewSectionBox(element,name,offset))

# end Transaction
TransactionManager.Instance.TransactionTaskDone()
# output results
OUT = results

`ViewSelector`

Select & Collect the return View(s).

`TransferViewTemplateAndFilterUI`

Transfer View Template(s) including the associate Filter Element(s) from a Linked Document to the current Document.

Continue to PART – B

6 thoughts on “Quasar Package Guide: PART – A”

Thiru Varasan Kaliyaperumal says:

September 16, 2018 at 7:38 pm

I’m a beginner for python and your scripts are easy and understandable…thanks

LikeLike

1. mgjean says:

  September 17, 2018 at 1:03 am

  I glad, you find it useful.

  LikeLike

ck says:

September 17, 2018 at 5:02 am

that is what we after, simple script, thanks mate !

LikeLike

1. mgjean says:

  September 17, 2018 at 5:22 am

  Thank you too, mate

  LikeLike

Marcin says:

October 23, 2018 at 6:58 pm

Elevation by Room – brilliant, far easier than the one available on Dynamo forum!

It did work, however with a warning that Operation Failed. I couldn’t select a specific View Template.
Another thing is that I would love to assign a specific Elevation Type, and have no clue whatsoever how to do it via Dynamo.

Otherwise, brill!

LikeLike

1. mgjean says:

  October 24, 2018 at 12:13 am

  Hello Marcin,
  After you get all your desire elevation views, manually applying view template and changing elevation type shouldn’t be a problem.

  LikeLike

	min.naung on Spatial Element Tools Revit Ad…
	TUAH HAMID on Spatial Element Tools Revit Ad…
	min.naung on Spatial Element Tools Revit Ad…
	Tuah Hamid on Spatial Element Tools Revit Ad…
	min.naung on Transfer Template Revit A…

TwentyTwo

a place for BIM Programming enthusiasts

Quasar Package Guide: PART – A

(PACKAGE DEPRECATED)

`ActiveView`

`CeilingViewByRoom`

`CopyPasteFilter`

`CreateDuctByModelCurves`

`CreateBeamsByModelCurves`

`CreateWallSweep`

`ElevationInRoom`

`ThreeDViewByRoom`

`ViewSelector`

`TransferViewTemplateAndFilterUI`

Continue to PART – B

6 thoughts on “Quasar Package Guide: PART – A”

Leave a Reply Cancel reply

(PACKAGE DEPRECATED)

ActiveView

CeilingViewByRoom

CopyPasteFilter

CreateDuctByModelCurves

CreateBeamsByModelCurves

CreateWallSweep

ElevationInRoom

ThreeDViewByRoom

ViewSelector

TransferViewTemplateAndFilterUI

Continue to PART – B

Share this:

Like this:

6 thoughts on “Quasar Package Guide: PART – A”

Leave a Reply Cancel reply

`ActiveView`

`CeilingViewByRoom`

`CopyPasteFilter`

`CreateDuctByModelCurves`

`CreateBeamsByModelCurves`

`CreateWallSweep`

`ElevationInRoom`

`ThreeDViewByRoom`

`ViewSelector`

`TransferViewTemplateAndFilterUI`
